CH-3E / HH-3E JOLLY GREEN GIANT (SIKORSKY)
Gary's Combat Aircraft Reference Guide

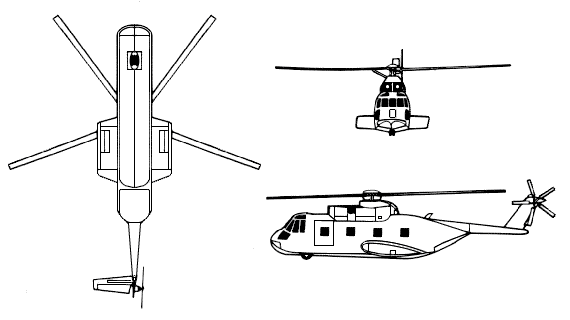

FM 44-80:  CH-3

GENERAL DATA

Country of Origin: USA.
Similar Aircraft: CH-53 Sea Stallion, SH-3 Sea King, Super Frelon, Puma.
Crew: Two.
Role: Transport, cargo (30 equipped troops), assault, search and rescue missions.
Armament: Usually none.
Dimensions: Length: 57 ft, 3 in (17.46 m). Rotor diameter: 62 ft (19 m).

NOTES

The CH/HH-3 is a twin-engine, single-rotor, medium-transport helicopter.

Fifteen combat-equipped parachutists can jump from this aircraft. Parachutists walk out the door 90 degrees to the aircraft in a crouched position to avoid hitting their heads on the upper door frame. They do not make a vigorous exit. The speed of the aircraft during all jump operations is between 70 knots and 90 knots indicated air speed.

DESCRIPTION

Wings: Large, five-blade main rotor mounted above the body midsection.

Engine(s): Two turboshaft engines on top of the body midsection. Two round air intakes located above and behind cockpit.

Fuselage: Boat-shaped body with blunt, rounded nose, gradually tapering upward at the rear. A hump on top of the body and landing gear in pods on the sides. Stepped cockpit.

Tail: Single, tapered flat on right side of swept-back fin. Small rotor on left side of fin.

USER COUNTRIES

Italy, USA.

More CH-3 / HH-3 Art

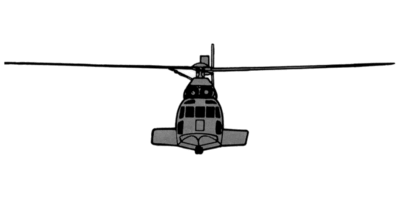

GTA 44-2-18:  CH-3 Front

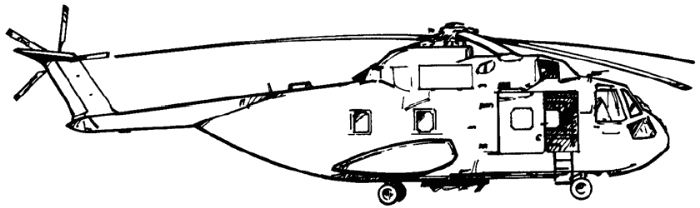

GTA 44-2-18:  CH-3 Side

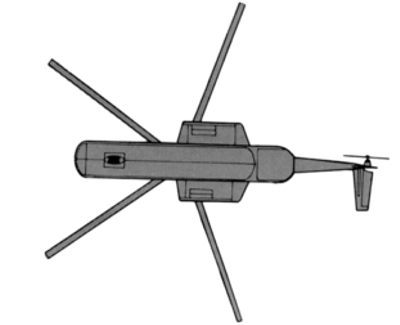

GTA 44-2-18:  CH-3 Bottom

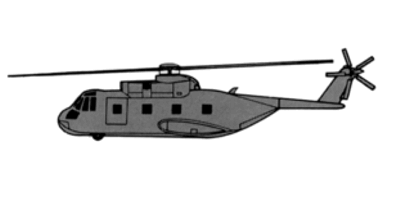

FM 3-21.220:  CH-3 Side
