Italy
HIRUNDO A109 (AGUSTA)
Gary's Combat Aircraft Reference Guide

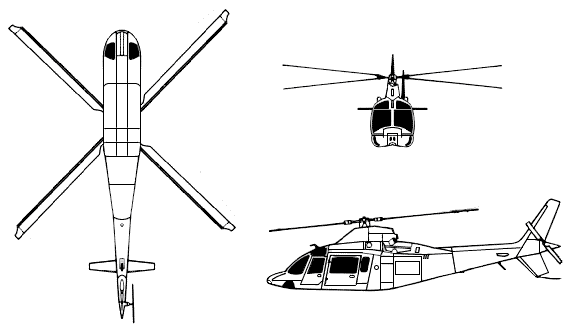

FM 44-80:  Hirundo A109

GENERAL DATA

Country of Origin: Italy.
Similar Aircraft: OH-58 Kiowa, UH-1 Iroquois, UH-1N Model 212, Lynx.
Crew: One, two.
Role: Utility, ECM, ambulance, scout, attack, air defense, antitank.
Armament: Machine guns, rockets, pods, HOT or TOW missiles.
Dimensions: Length: 42 ft, 10 in (13.06 m). Rotor diameter: 36 ft (11.02 m).

DESCRIPTION

Wings: Four-blade main rotor mounted on hump above the body midsection. Weapon-carrying platforms at bottom midsection.

Engine(s): Two turboshafts on top of fuselage. Exhaust ports protrude upward and to the rear.

Fuselage: Rectangular with flat belly. Retractable landing gear. Tapered, rounded nose section. Stepped cockpit. Upswept, tapered rear section.

Tail: Swept-back and tapered tail fin with angular tip. Swept-back and tapered belly fin with angular tip. Small rotor on left side attached to the tapered tail boom.

USER COUNTRIES

Argentina, Greece, Italy, Mexico, UK, Venezuela.

More Hirundo A109 Art

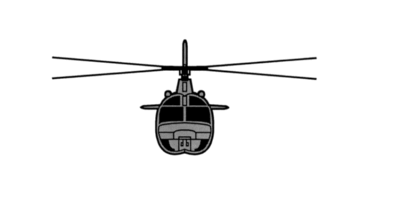

GTA 44-2-18:  Hirundo A109 Front

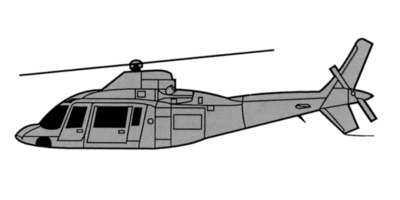

GTA 44-2-18:  Hirundo A109 Side

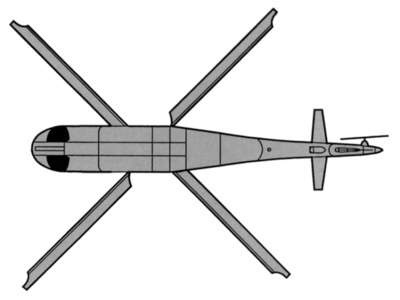

GTA 44-2-18:  Hirundo A109 Bottom
