Russia Poland
An-2 COLT (ANTONOV)
Gary's Combat Aircraft Reference Guide

FM 44-80:  An-2

GENERAL DATA

Countries of Origin: CIS (formerly USSR), Poland.
Similar Aircraft: U-6A Beaver, OV-1 Mohawk, OV-10 Bronco
Crew: Two.
Role: Light-transport (10 equipped troops), general utility.
Armament: Usually none.
Dimensions: Length: 41 ft, 9 in (12.75 m). Span: 59 ft, 8 in (18.19 m).

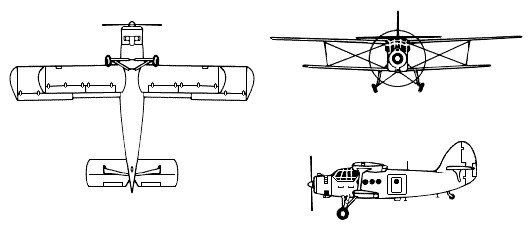

DESCRIPTION

Wings: Biplane and rectangular-shaped with curved tips. One high-mounted and one low-mounted (shorter), connected and braced by two struts.

Engine(s): One radial piston engine (some versions are turboprop) mounted in the nose.

Fuselage: Short and thick with solid, blunt nose. Stepped cockpit. Fixed landing gear.

Tail: Fin tapered with large, round tip. Flats are low-mounted on the tail fin and rectangular-shaped with curved tips.

USER COUNTRIES

Afghanistan, Albania (Y-5), Angola, Benin, Bulgaria, Cambodia, CIS, Cuba, Germany, Iraq, Laos, Mali, Mongolia, Nicaragua, North Korea, People's Republic of China (Y-5), Poland, Romania, Tanzania, Vietnam.
