USA
O-2 SKYMASTER (CESSNA)
Gary's Combat Aircraft Reference Guide

FM 44-80:  O-2

GENERAL DATA

Country of Origin: USA.
Similar Aircraft: Skymaster 335 Model.
Crew: Two.
Role: Observation, liaison, forward air control, psychological warfare.
Armament: Miniguns, rockets.
Dimensions: Length: 29 ft, 9 in (9.6 m). Span: 38 ft, 3 in (11.64 m).

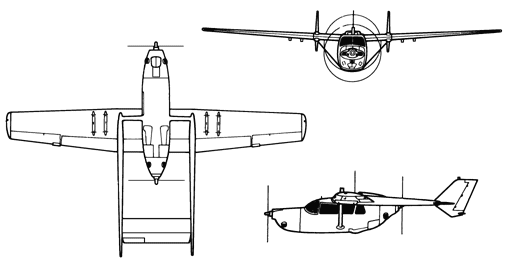

DESCRIPTION

Wings: High-mounted with straight leading edges and forward-tapered trailing edges from midwing to blunt tips.

Engine(s): Two piston engines, one on the nose and one on the rear of the body.

Fuselage: Stubby, box-like with propellers at each end. Stepped, glassed-in cockpit. Rear of body upswept to tail booms.

Tail: Rectangular tail flat at end of twin tail booms. Swept-back tail fins with blunt tips at tips of tail flat. Fins extend above and below tail flat.

USER COUNTRIES

Central African Republic, Chad, Costa Rica, Dominican Republic, El Salvador, Ethiopia, Guinea-Bissau, Iran, Jamaica, Mauritania, Nicaragua, Niger, Portugal, Sri Lanka, Togo, USA, Venezuela.
