| GENERAL DATA |
|---|
| |
M106 |
M106A1 |
M106A2 |
|---|
| Country of Origin | USA |
|---|
| Role | Close indirect fire support vehicle |
|---|
| Date Of Introduction |
? |
? |
? |
|---|
| Crew |
4 (squad leader, gunner, assistant gunner, and driver/ammunition bearer) |
|---|
| Combat Weight |
12.85 tons (11.66 mt) |
13.07 tons (11.86 mt) |
13.44 tons (12.19 mt) |
|---|
| Ground Pressure |
8.2 psi (0.58 kg/cm²) |
8.3 psi (0.58 kg/cm²) |
8.6 psi (0.60 kg/cm²) |
|---|
| Length, Overall |
16.17 ft (4.93 m) |
16.17 ft (4.93 m) |
16.17 ft (4.93 m) |
|---|
| Width, Overall |
9.42 ft (2.87 m) |
9.42 ft (2.87 m) |
8.81 ft (2.69 m) |
|---|
| Height, Overall |
7.25 ft (2.21 m) |
8.17 ft (2.49 m) |
7.29 ft (2.22 m) |
|---|
| Ground Clearance |
16 in (406 mm) |
17.125 in (435 mm) |
|---|
| PERFORMANCE |
|---|
| |
M106 |
M106A1 |
M106A2 |
|---|
| Engine |
209 hp (156 kw) gasoline |
212 hp (158 kw) diesel |
|---|
| Range |
185 miles (298 km) |
295 miles (475 km) |
300 miles (483 km) |
|---|
| Fuel Capacity |
85 gal (322 l) gasoline |
95 gal (360 l) diesel |
|---|
| Road Speed |
40 mph (64 km/h) |
41.5 mph (67 km/h) |
40 mph (64 km/h) |
|---|
| Cross Country Speed | ? |
|---|
| Swim Speed |
3.5 mph (5.6 km/h) |
3.6 mph (5.8 km/h) |
|---|
| Fording Depth | Amphibious with minimal preparation |
|---|
| Grade | 60% |
|---|
| Side Slope | 30% |
|---|
| Trench Crossing | 5.5 ft (1.68 m) |
|---|
| Vertical Wall Climb | 2.0 ft (0.61 m) |
|---|
| PROTECTION |
|---|
| | M106, M106A1, M106A2 |
|---|
| Armor | 5083 Aluminum. Protection from small-arms fire (7.62mm and smaller) and fragmentation munitions |
|---|
| Applique Armor | Anti-mine armor on bottom of chassis |
|---|
| Explosive Reactive Armor | N/A |
|---|
| Active Protective System | N/A |
|---|
| NBC Protection System | N/A |
|---|
| Smoke Equipment | N/A |
|---|
| ARMAMENT |
|---|
| M106, M106A1, M106A2 |
|---|
| Type |
Mount |
Typical Ammo Load |
| 4.2-inch (107mm) M30 mortar |
Internal turntable mount; manual loading |
88 (93 M106). 54 fuzes |
| .50 cal M2HB machine gun |
Commander's cupola; pintle-mounted; belt feed |
600 |
|
| FIRE CONTROL |
|---|
| | M106, M106A1, M106A2 |
|---|
| Fire Control System | N/A |
|---|
| Main Gun Stabilization | N/A |
|---|
| Rangefinder | N/A |
|---|
| Infrared Searchlight | N/A |
|---|
NOTES

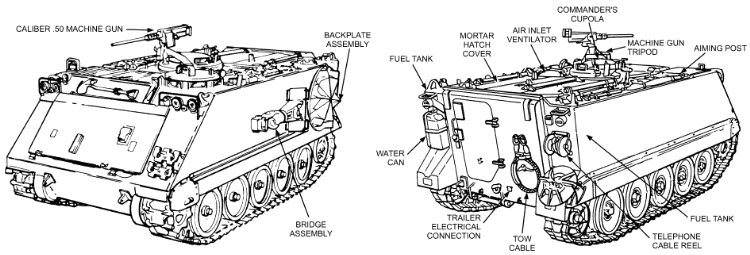

The M106 carrier is the M113 armored personnel carrier modified to carry the M30 4.2-inch (107mm) mortar on a specially designed
turntable mount. It is an armored, full-tracked, self-propelled vehicle that can swim streams and small bodies of water. A .50 caliber
machine gun is mounted on the cupola for the vehicle commander's use.
To fire the 4.2-inch mortar from the carrier, the top plating to the rear of the carrier has a mortar-hatch cover, which is hinged
and folds to both sides. The carrier provides limited armor protection for the squad during maneuver. In combat, the mortar is fired
with the ramp closed and locked. During firing exercises in training, the mortar may be fired with the ramp open for visual inspection
by safety personnel.
The mortar and its components can be removed from the carrier for ground-mounted firing. The baseplate, bridge, and rotator assemblies
of the ground mount are stowed outside the carrier. A minimum of four mortarmen is required to remove the mortar and standard assembly
from the travel position.
Replaced by the M1064A3 120mm mortar carrier in U.S. service.
VARIANTS
- XM106 (T257E1)
- Prototype M106.
- M106
- Original production model. The M106 was converted to the M106A1, which was then converted to the M106A2. See data above.
- M106A1
- Replaced the gasoline-powered engine with a diesel engine. See data above.
- M106A2 (NSN 2350-01-069-6931)
- "Carrier, Mortar, 107-mm, M30, Self-propelled, M106A2". See data above.
More M106 Art
Mortar vehicular mount
Positions for traversing the turntable
M106 Photos - Click on image sample to see full size image.

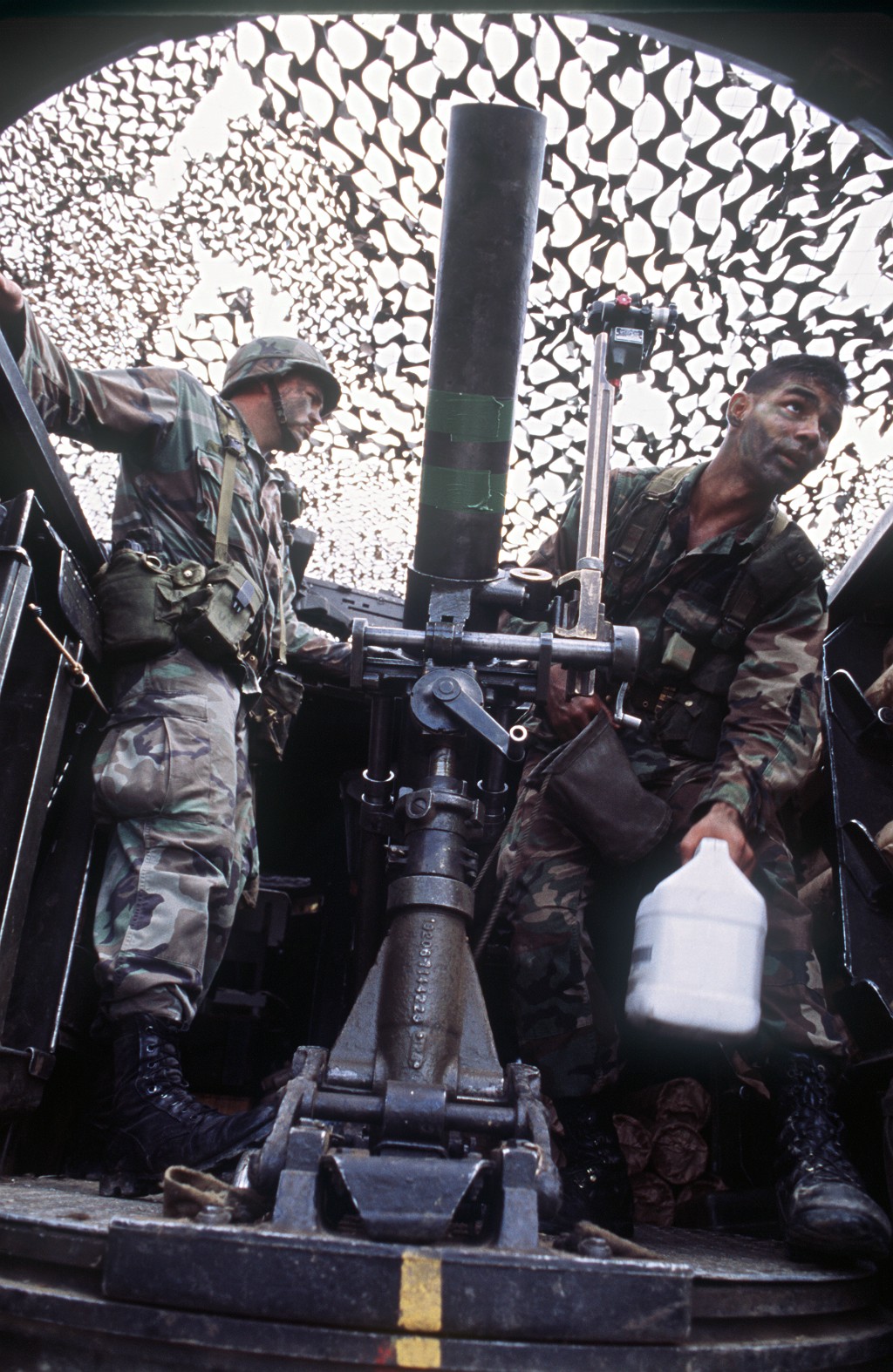

1st Battalion, 61st Infantry Division.
Live fire exercise.
01-MAY-1989
U.S. DoD Photo
1024x1574, 388K, JPEG
1st Battalion, 61st Infantry Division.
Live fire exercise.
01-MAY-1989
U.S. DoD Photo
1024x679, 238K, JPEG
1st Battalion, 61st Infantry Division.
Live fire exercise.
01-MAY-1989
U.S. DoD Photo
1024x685, 189K, JPEG
Field training exercise.
01-APR-1975
U.S. DoD Photo
1024x675, 121K, JPEG
