France
AMX-10RC Armored Reconnaissance Vehicle
Gary's Combat Vehicle Reference Guide

AMX-10RC
GENERAL DATA
 AMX-10RC
Country of OriginFrance
RoleReconnaissance vehicle
Date Of Introduction1979
Crew4 (commander, gunner, loader, driver)
Combat Weight17.4 tons (15.8 mt)
Ground Pressure?
Drive Formula6 x 6
Length, Overall 30.02 ft (9.15 m)
Length, Hull 20.83 ft (6.35 m)
Width, Overall 9.68 ft (2.95 m)
Height, Overall 8.73 ft (2.66 m)
Height, Turret Top 7.51 ft (2.29 m)
Ground Clearance13.8 in (350 mm)
PERFORMANCE
 AMX-10RC
Engine260 hp (194 kw) diesel
Range621 miles (1,000 km)
Road Speed53 mph (85 km/h)
Cross Country Speed?
Swim Speed2.8 mph (4.5 km/h)
4.5 mph (7.2 km/h) with 2 hydrojets
Fording DepthAmphibious
Grade50%
Side Slope30%
Trench Crossing5.4 ft (1.65 m)
Vertical Wall Climb2.6 ft (0.8 m)
PROTECTION
 AMX-10RC
ArmorAluminum
Applique ArmorAvailable, Desert Storm version
Explosive Reactive ArmorN/A
Active Protective SystemKCBM ATGM IRCM decoy device
NBC Protection SystemYes
Smoke Equipment2x2 smoke grenade launchers (16 grenades)
ARMAMENT
AMX-10RC
Type Mount Typical Ammo Load
105mm (48 Cal) CN-105-F2 rifled gun Turret; manual loading 38 (12 ready, 26 stowed)
APFSDS-T, HEAT-T, HE-T
7.62mm machine gun Coaxial to main gun 4,000
FIRE CONTROL
 AMX-10RC
Fire Control SystemCOTAC M401
Main Gun StabilizationN/A
RangefinderCilas APX M550 laser
Infrared SearchlightN/A

NOTES



AMX-10RC

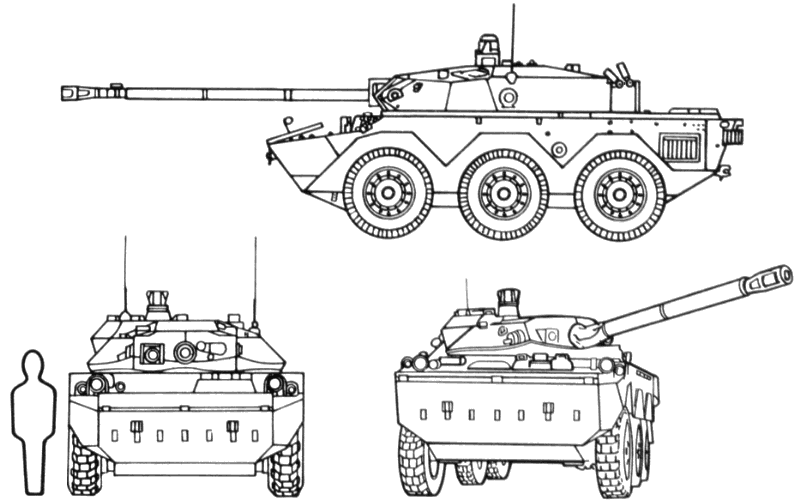

Recognition features:

VARIANTS

The Alis modular thermal sight can be used on AMX-10RC. A 280 hp Baudouin engine replaced the original engine in some upgrades. In 1997 the French army demonstrated a version of the Leclerc Battlefield Management System on the AMX-10RC.
Desert Storm version
Vehicles have applique armor, an ATGM IRCM decoy device, and a DIVT 16 thermal sight ( range 4,000 m).

AMX-10RC Photos - Click on image sample to see full size image.

RSLC: AMX-10RC
AMX-10RC
U.S. Army Photo
550x308, 47K, JPEG
